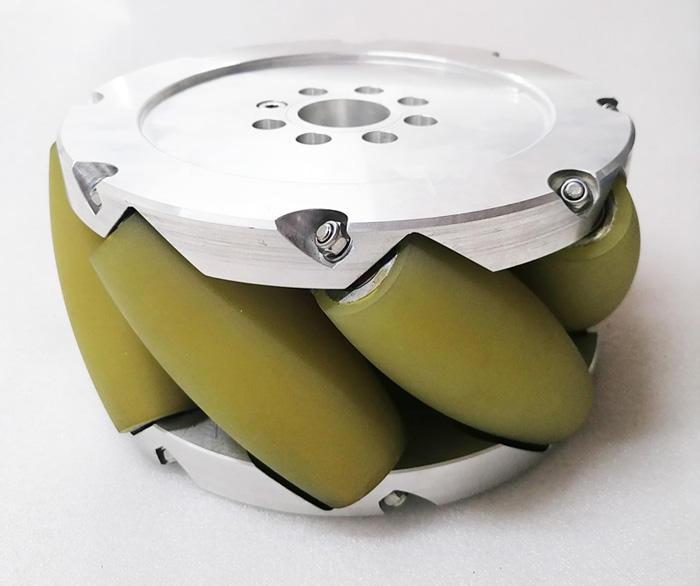

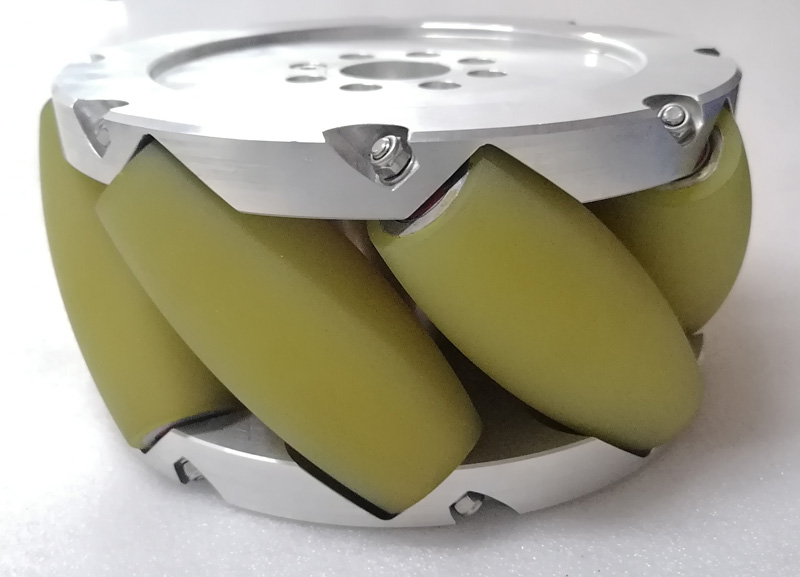

KW011 High performance Load capacity 10 inch(254mm) mecanum wheel set Large Industrial Robot Yellow Mecanum Wheel

The mecanum wheel can depend on the direction and speed of each wheel. The final combination of these forces will generate a resultant force vector in any desired direction to ensure that the platform can move freely in the direction of the final resultant force vector without changing the direction of the wheel itself. It's perfect for the tight space. There are many small rollers distributed diagonally on the rim, so the wheels can slide laterally. When the wheel rotates around the fixed wheel spindle, the envelope surface of each small roller is a cylindrical surface, so it can continuously roll forward. Mecanum wheels are compact and sporty. There are 4 such new wheels combined together, which can realize all-round motion functions more flexibly and conveniently. Our Mecanum wheels are perfect for use in automated guided vehicles, where precision and agility are essential. Our heavy-duty industrial Mecanum wheels are designed to withstand the toughest working conditions, making them ideal for use in forklifts and other heavy-duty equipment.

Specification:

►Diameter: 254mm（10inch)

►Width: 128mm

►Number of Rollers: 8

►Number of Plates: 2

►Body material: Aluminum alloy

►Roller material: Steel core with Polyurethane coated

►Net weight: 15kg*4

►Load capacity: 1500kg/Set
