KW0005 203mm heavy duty double aluminum Omni-directional wheel

POST TIME:2023-06-26 16:41:02 VIEWS: times

Omni wheels are used in highly mobile robotic platforms, conveyor systems, and material handling equipment Use these omni wheels to make your robot turn smoothly or build a holonomic drivetrain

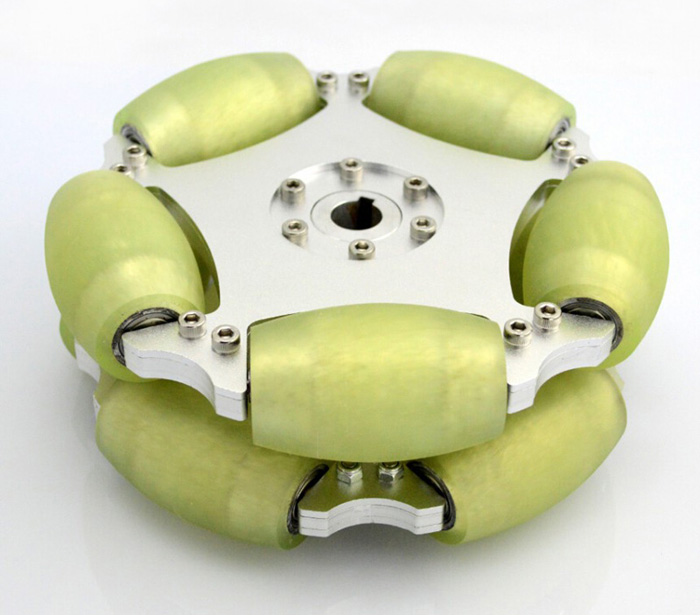

KW0005 8 inches Load capacity 80kg 203mm heavy duty double aluminum Omni-directional wheel with PU bearing roller

The (8 inch)203mm omnidirectional wheel,provides a maximum load capacity of 80kg.Two rolling bearings are embedded in each driven small wheel, which is composed of a polyurethane wheel and an aluminum wheel.The accessories are machined with full CNC high precision technology.It has a good performance in terms of stability, quietness, reliability and wear resistance, and can adapt to various environments such as indoors and outdoors. Omniwheel has been applied in a wide range of fields to perform specific tasks ,including AGV, automation，robot，heavy industry，and so on.
Our omni wheel have light load，medium load and heavy load.

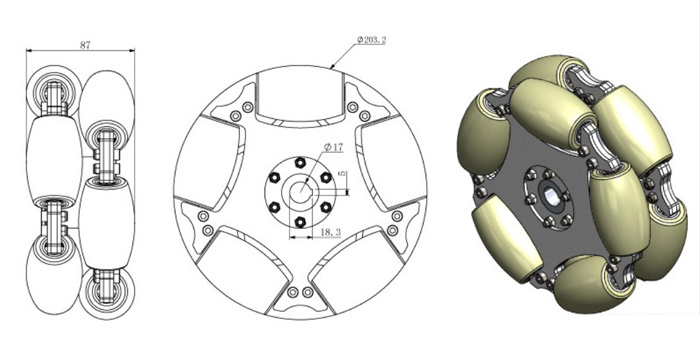

Specification:

►Diameter: 8 inches (203mm)

►Inner hole diameter: 17mm

►Axial width: 87mm

►Number of rollers: 10pcs

►Number of Plates: 2

►Body material: aluminum alloy

►Roller material: polyurethane

►Roller Bearing: Ball bearing

►Net weight: 4.5KG

►Load capacity: 80KG/piece
