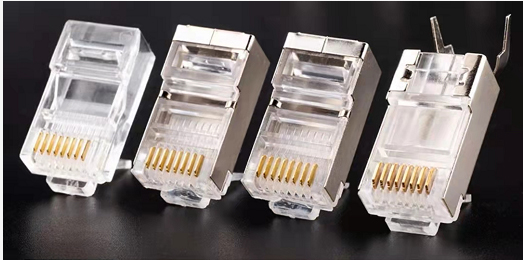

RJ45 CAT6 Plug connector

Ideal for building custom Length that support speeds associated with Category 6 cable
Color: Clear
Plug Type: RJ-45
Conductors: 8
Gold plated leads for better data transmitting and higher signal strength
The durable thermoplastic housings of these modular plugs, allow for visual verification of wiring configurations
Application for Cat6 Cable

Specifications:
1). Transparent color

2). Meet or exceed the requirement in the cat5e T568A and T568B

3). Contacts are nickel plated, phosphor bronze with 1U, 3U, 6U….50U gold plated

4). Exclusive stagger conductors guide design reduces near end cross talk

6) Accept 22AWG, 23AWG, 24AWG, 26AWG solid with a insulation diameter of 0.64mm, 0.56mm, 0.50mm, 0.40mm

Features:

1. Can be done transparent color or other colors
2. Gold plated plate 3 pin contacts to ensure good performance after connecting the cable.
3. The plug time is greater than 1000
4. Bending resistance 180 degrees.
5. End-way, easy to make.

Electrical:

1) UL application:250vac,2a(max)

2) Dielectrical with standing voltage:500v AC

3)insulation resistance:35m ohm(max), after environmental testing

Mechanical:

1 )cable- to-plug tensile strength:20lbs(89n) (min.)

2)Durability: 750 matching cycles

3) temperature range:-40~60

Material and finish:

1) housing:polycarbonate(pc)UL94-v-0 or UL 94-v-2
2) contact blade: phosphor broze
3) Gold plating:80u over nickel,3-50u gold plating
