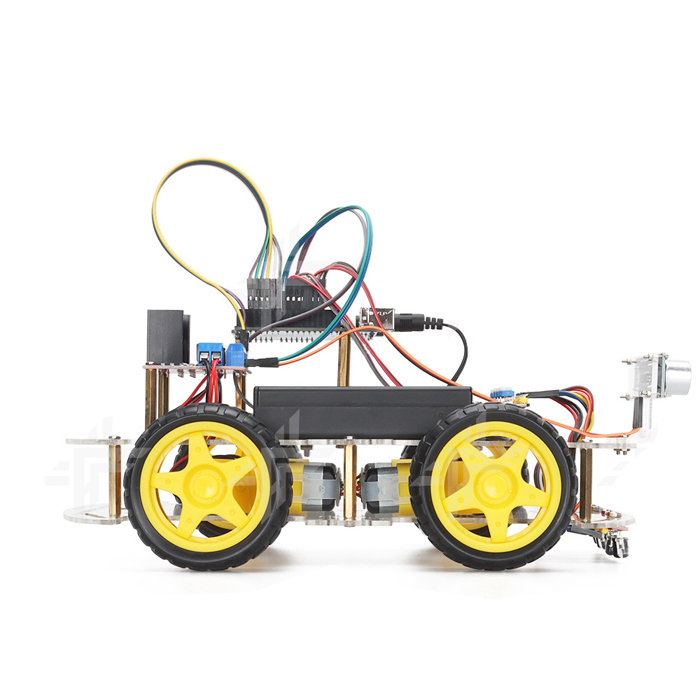

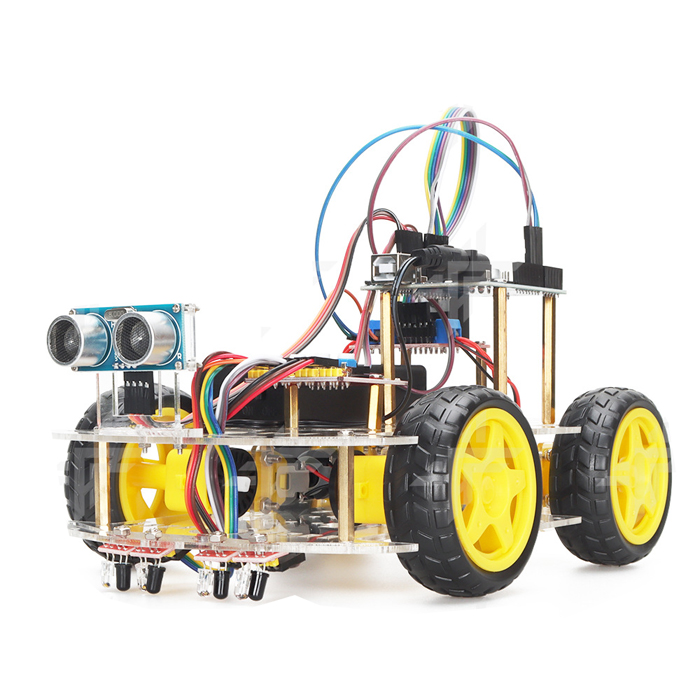

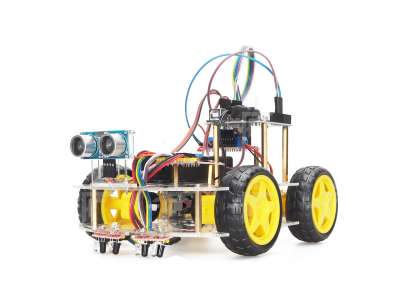

KR20005 Tracking Arduino-Based Starter and Training Robotics Set
KR20005 Ultrasonic Smart Robot Car Kit 4WD Four Way Tracking Arduino-Based Starter and Training Robotics Set
Description
1. This product is a smart car developed based on development board, which can realize four-way tracking function and ultrasonic obstacle avoidance function.
2. There are mainly four modules, including infrared signal detection module, main control module, motor drive module, and ultrasonic sensor module.
3. The smart car adopts a welding-free installation design.
The components are fixed by copper pillars and screws.
The circuit connection between each module is connected by DuPont wire, which is simple and convenient.
Feature
1. The main control board adopts development board.
2. The motor drive module uses a typical L298N module to drive a DC motor.
3. The infrared signal detection module uses four infrared light pairs to detect the black line and realize the tracking function.

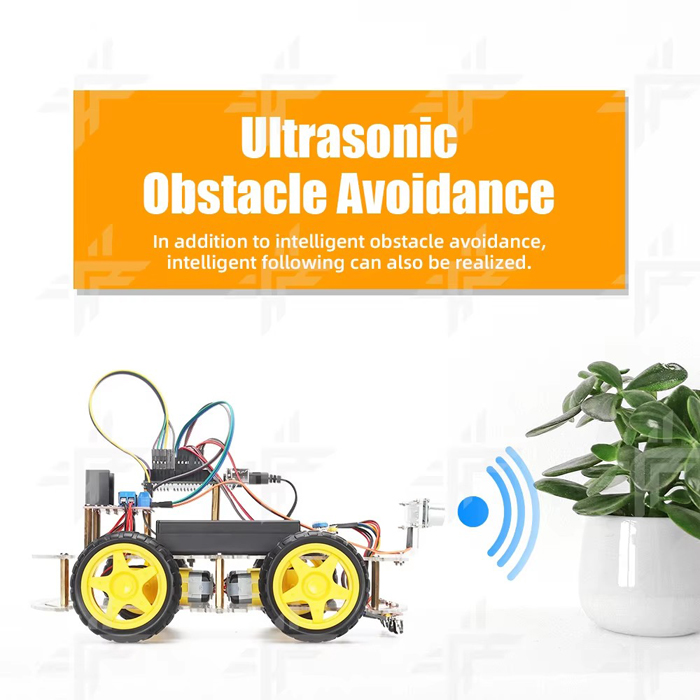

4. The ultrasonic sensor module uses the HC-SR04 module, through which the distance is measured, so as to realize the ultrasonic obstacle avoidance function.
Product Paramenters
Microprocessor | CH340G ATmega328p |
Power supply | 2 removable 3.7v lithium batteries |
Input | Infrared sensor (four-channel infrared sensor module) |
Motor | DC geared motor |
Motor drive | L9110S module |
Input | Ultrasonic module (HC-SR04) |

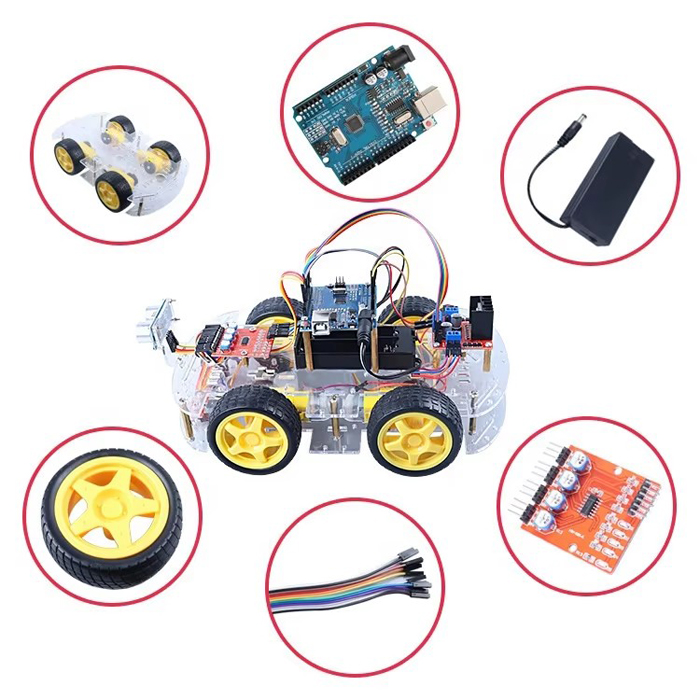

Product List
1 set | Four-way Tracking Car |
1 piece | Exquisite packaging box |
